1. The Anatomy of an Engineered European Roof System
A pitched roof is not merely a collection of external tiles; it is a multi-tiered thermodynamic building envelope that regulates moisture diffusion, prevents structural wind uplift, manages ice-damming cycles, and eliminates thermal transmission.
At Zappydoqust, every complete roof replacement is executed under the strict guidelines of the Zentralverband des Deutschen Dachdeckerhandwerks (ZVDH) and European harmonized standard EN 1304 / EN 490.
2. Technical Performance Matrix
| Layer / Component | Material Specification | Compliance Standard |
|---|---|---|
| Outer Weather Skin | Interlocking Clay Tile / Natural Slate | DIN EN 1304 / EN 12326 |
| Ventilation Matrix | 40x60mm Counter-Batten Cavity | DIN 4108-3 (Rear Ventilation) |
| Underlayment Membrane | Monolithic 3-Layer Vapor Open (sd ≤ 0.02m) | DIN EN 13859-1 (Class UDB-A) |
| Thermal Core | PIR Polyurethane / Wood Fiber Board | DIN EN 13165 / DIN 4108-4 |
| Vapor Retarder | Variable Permeance Membrane (sd 0.2 - 5m) | DIN 4108-7 Airtightness |
3. Step-by-Step Replacement Methodology
Our full roof replacements follow a surgical process designed to protect the structural interior throughout the intervention:
- Laser Rafter Deflection Audit: Checking each rafter for sag, rot, or fungal decay using calibrated resistance drills. Damaged timbers are doubled (sistering) with structural C24 timber.
- Vapor-Permeable Monolithic Underlay: High-performance roof underlayment is laid horizontally with minimum 100mm overlaps and sealed with solvent-free butyl edge tape.
- Counter-Batten Air Cavity: 40mm vertical counter-battens create an unobstructed air channel from eave intake to dry-ridge exhaust, rapidly drying out condensation and driving out summer heat.
- Storm Clip Fixation: Mechanical stainless steel clips (DIN 1055-4) are calculated per roof zone (eaves, verge, and hip zones) to resist cyclonic storm gusts exceeding 140 km/h.
4. Material Selection: Clay vs Slate vs Metal
Natural Slate: Provides an unmatched 100+ year operational lifespan. Chemical inertness makes it completely impervious to acid rain, UV degradation, and extreme temperature swings.

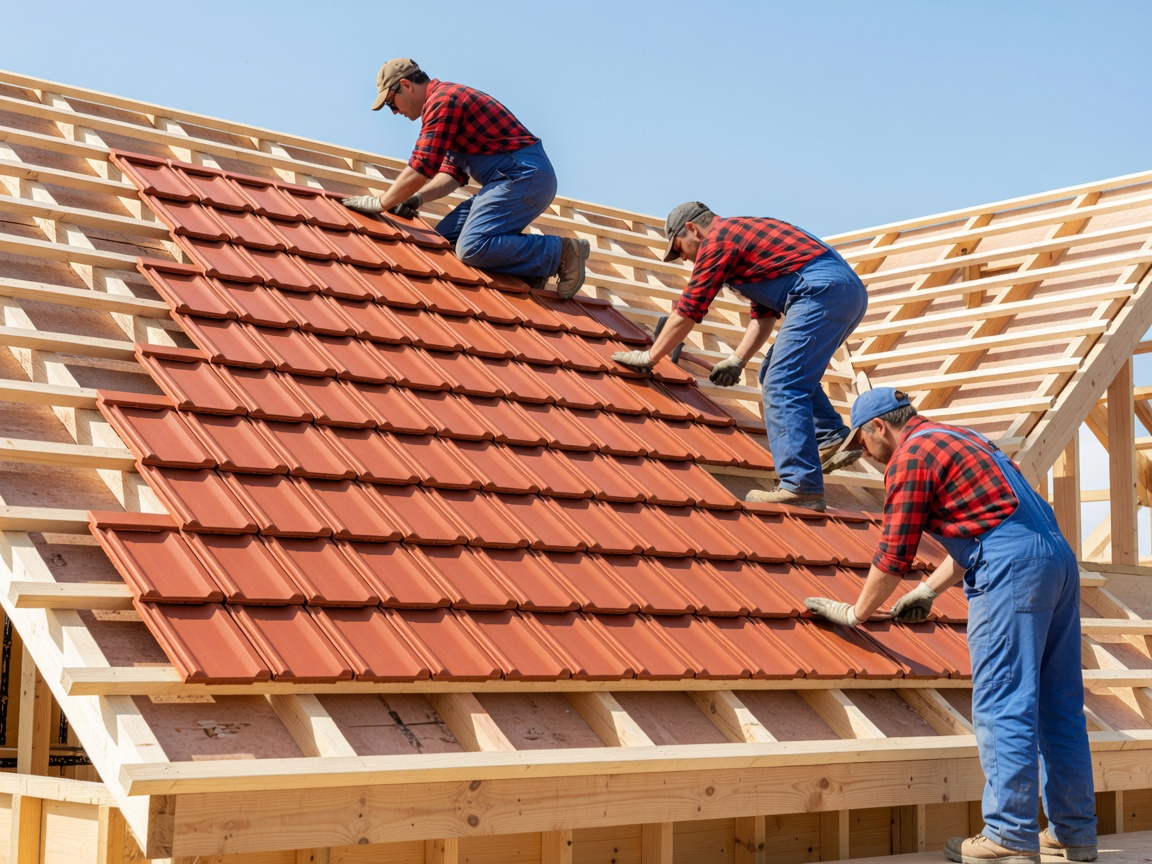

Engobed Interlocking Clay Tiles: Fired at over 1,000°C with mineral coatings, clay tiles resist moss adherence, retain color saturation permanently, and offer high frost resistance (DIN EN 539-2).
